For model CR-297 Ch= CR, Emerson Radio & Phonograph Corp.; New York, NY:
Emerson CR-297 (1939) player-view copy from Ebay seller mall

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8GT 12K7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)

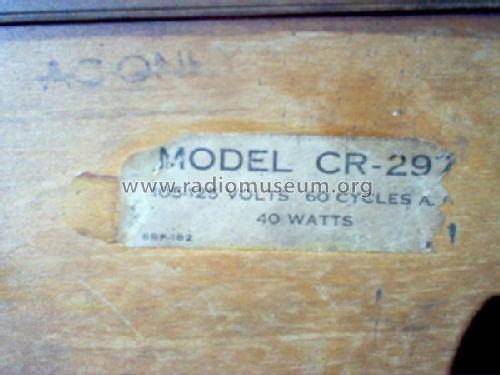

Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: CR-297 Ch= CR - Emerson Radio & Phonograph
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 20.5 x 30.25 x 15.375 inch / 521 x 768 x 391 mm
Notes

BC (540-1730kHZ) band.

Price in first year of sale 49.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Pre-War Consoles

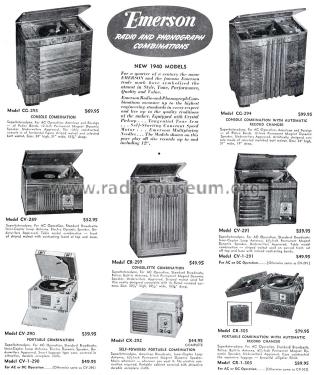

Literature/Schematics (3) Emerson Folder Form. 40-31, 1-40 for 1940.
