For model CS-272 Ch= CS, Emerson Radio & Phonograph Corp.; New York, NY:
eBay seller larry21751.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K8GT 6K7GT 6SQ7GT 6AE5GT 25AC5GT 25Z6
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: CS-272 Ch= CS - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

BC (540-1730kHz) and SW (5.6-18.0MHz) bands.

Price in first year of sale 32.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

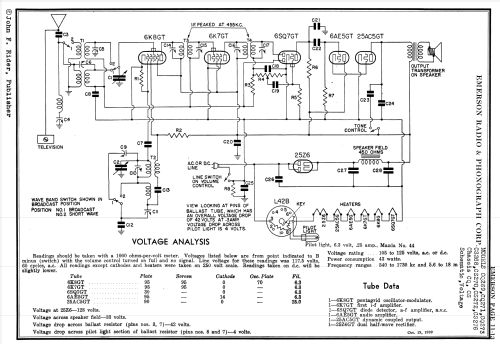

Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (3) Emerson Folder Form. 40-31, 1-40 for 1940.
