CS276 Ch= CS

CS276 Ch= CS; Emerson Radio & (ID = 1251735) Radio

CS276 Ch= CS; Emerson Radio & (ID = 1251736) Radio

CS276 Ch= CS; Emerson Radio & (ID = 1251737) Radio
Use red slider bar for more.
CS276 Ch= CS; Emerson Radio & (ID = 1251735) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K8GT 6K7GT 6AE5GT 25AC5GT 25Z6
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: CS276 Ch= CS - Emerson Radio & Phonograph
Notes BC(540-1730kHz) and SW(5.6-18.0MHz) bands.
External source of data Ernst Erb

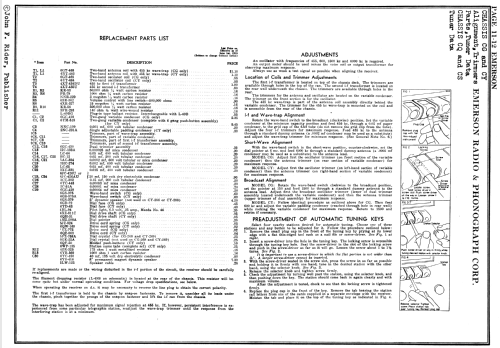

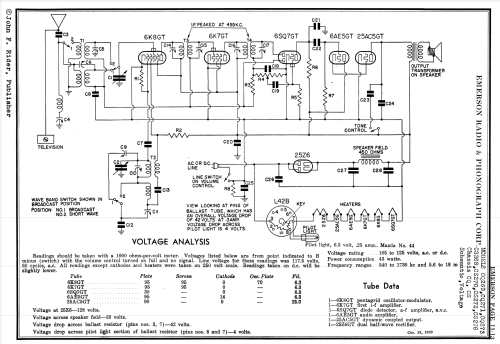

Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
