CX263 Ch= CX

CX263 Ch= CX; Emerson Radio & (ID = 15817) Radio

CX263 Ch= CX; Emerson Radio & (ID = 15824) Radio

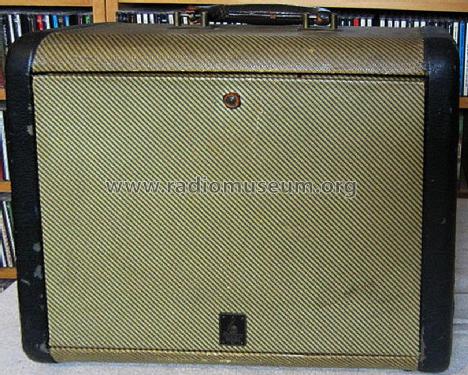

CX263 Ch= CX; Emerson Radio & (ID = 1768085) Radio CX263 Ch= CX; Emerson Radio & (ID = 1768086) Radio
CX263 Ch= CX; Emerson Radio & (ID = 1768088) Radio
Use red slider bar for more.
CX263 Ch= CX; Emerson Radio & (ID = 1768085) Radio
Emerson Radio &: CX263 Ch= CX [Radio] ID = 1768085 1078x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model CX263 Ch= CX, Emerson Radio & Phonograph Corp.; New York, NY:
From a Canadian Kijiji advertisement.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7GT 1N5GT 1N5GT 1H5GT 1Q5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 1.5;90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: CX263 Ch= CX - Emerson Radio & Phonograph
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Notes Battery radio. BC(540-1600kHz) band. Built-in loop antenna.
External source of data E. Erb 3-907007-36-0
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
