DB247 "Snow White"

DB247 'Snow White' ; Emerson Radio & (ID = 2374305) Radio DB247 'Snow White' ; Emerson Radio & (ID = 2374304) Radio
DB247 'Snow White' ; Emerson Radio & (ID = 2374309) Radio DB247 'Snow White' ; Emerson Radio & (ID = 2374312) Radio
DB247 'Snow White' ; Emerson Radio & (ID = 2374311) Radio DB247 'Snow White' ; Emerson Radio & (ID = 2374306) Radio
DB247 'Snow White' ; Emerson Radio & (ID = 2374307) Radio DB247 'Snow White' ; Emerson Radio & (ID = 2374308) Radio
DB247 'Snow White' ; Emerson Radio & (ID = 554356) Radio DB247 'Snow White' ; Emerson Radio & (ID = 554363) Radio
Use red slider bar for more.

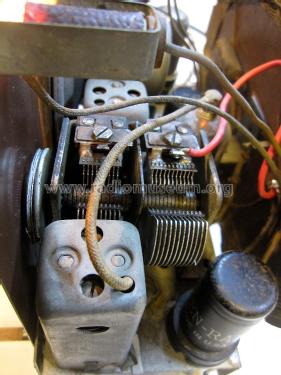

DB247 'Snow White' ; Emerson Radio & (ID = 2374305) Radio
Emerson Radio &: DB247 "Snow White" [Radio] ID = 2374305 1200x937
Select picture or schematic to display from thumbnails on the right and click for download.
For model DB247 "Snow White", Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1938 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12K7GT 12SQ7 50L6GT 35Z5GT
Conflicting model year with tubedata.
The model date contradicts tube dates. [ 35Z5GT (1939) 12SA7 (1939) 50L6GT (1939) 12SQ7 (1939)]
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.5 cm = 4.9 inch
Power out
from Radiomuseum.org Model: DB247 "Snow White" - Emerson Radio & Phonograph
Material Wooden case
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 275 x 195 x 150 mm / 10.8 x 7.7 x 5.9 inch
Notes case made of pressed wood.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Collectors' prices
Source of data - - Data from my own collection
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Here you find 1848 models, 994 with images and 1372 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Emerson Radio &: DB247 "Snow White"
Threads: 1 | Posts: 1
Hits: 179     Replies: 0
emerson: Schematic
Thomas Bavis
30.May.19
  1

Chassis DB is in Riders Volume 11, Emerson Page 11-22
www: (nostalgiaair.org/Resources/021/M0005021.htm)

Please do not insert extern links. Link removed.


Emerson Radio &: DB247 "Snow White"
