DB-301 Ch= DB

DB-301 Ch= DB; Emerson Radio & (ID = 285099) Radio
DB-301 Ch= DB; Emerson Radio & (ID = 1617764) Radio DB-301 Ch= DB; Emerson Radio & (ID = 348219) Radio
DB-301 Ch= DB; Emerson Radio & (ID = 348226) Radio DB-301 Ch= DB; Emerson Radio & (ID = 348223) Radio
DB-301 Ch= DB; Emerson Radio & (ID = 719777) Radio DB-301 Ch= DB; Emerson Radio & (ID = 1415288) Radio
DB-301 Ch= DB; Emerson Radio & (ID = 1566253) Radio DB-301 Ch= DB; Emerson Radio & (ID = 1566254) Radio
DB-301 Ch= DB; Emerson Radio & (ID = 1566255) Radio DB-301 Ch= DB; Emerson Radio & (ID = 1566256) Radio
Use red slider bar for more.
DB-301 Ch= DB; Emerson Radio & (ID = 1617764) Radio

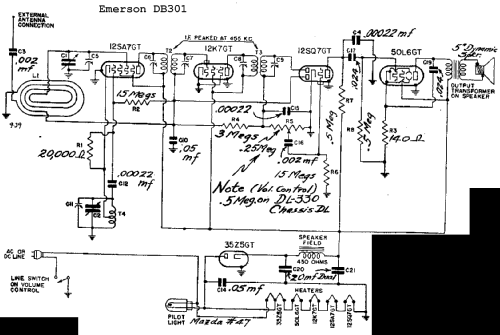

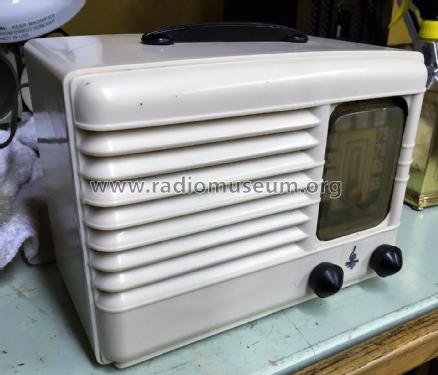

Emerson Radio &: DB-301 Ch= DB [Radio] ID = 1617764 883x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model DB-301 Ch= DB, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12K7 12SQ7 50L6 35Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: DB-301 Ch= DB - Emerson Radio & Phonograph
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 0 x 7 x 5.5 inch / 0 x 178 x 140 mm
Notes

BC (540-1600kHz) band. All GT tubes also possible. In Walnut finish $9.95, in Ivory Plaskon $14.95.

See this article about most similar Emerson chassis for this "American five family".

Price in first year of sale 9.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (3) Emerson Folder Form. 40-31, 1-40 for 1940.
