DL1-330 Ch= DL1

DL1-330 Ch= DL1; Emerson Radio & (ID = 135946) Radio
DL1-330 Ch= DL1; Emerson Radio & (ID = 133537) Radio DL1-330 Ch= DL1; Emerson Radio & (ID = 133538) Radio

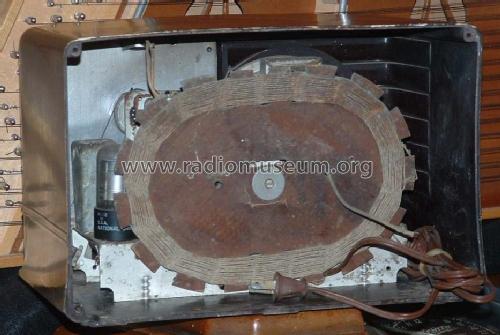

DL1-330 Ch= DL1; Emerson Radio & (ID = 268842) Radio DL1-330 Ch= DL1; Emerson Radio & (ID = 268844) Radio
DL1-330 Ch= DL1; Emerson Radio & (ID = 1205168) Radio DL1-330 Ch= DL1; Emerson Radio & (ID = 1205169) Radio

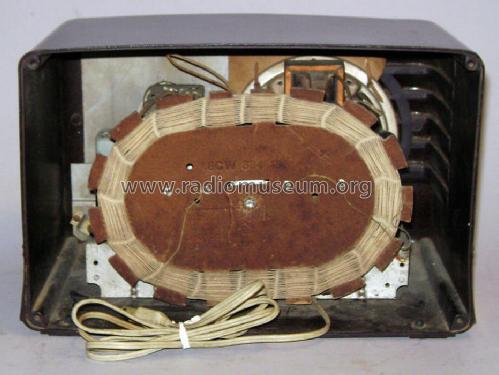

DL1-330 Ch= DL1; Emerson Radio & (ID = 1205170) Radio
Use red slider bar for more.
DL1-330 Ch= DL1; Emerson Radio & (ID = 133537) Radio

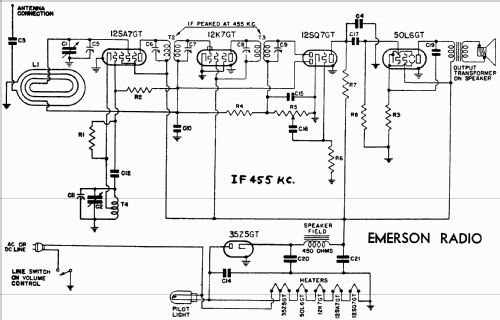

Emerson Radio &: DL1-330 Ch= DL1 [Radio] ID = 133537 591x386
Select picture or schematic to display from thumbnails on the right and click for download.
For model DL1-330 Ch= DL1, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12K7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: DL1-330 Ch= DL1 - Emerson Radio & Phonograph
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 300 x 200 x 180 mm / 11.8 x 7.9 x 7.1 inch
Notes BC(540-1600kHz) band. All metal tubes also possible.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 04, 1941


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
