DS372 (372) Ch= DS

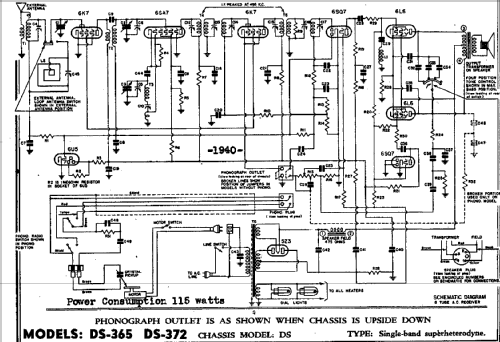

DS372 Ch= DS; Emerson Radio & (ID = 285189) Radio
DS372 Ch= DS; Emerson Radio & (ID = 1408243) Radio DS372 Ch= DS; Emerson Radio & (ID = 1408245) Radio
DS372 Ch= DS; Emerson Radio & (ID = 706811) Radio
Use red slider bar for more.

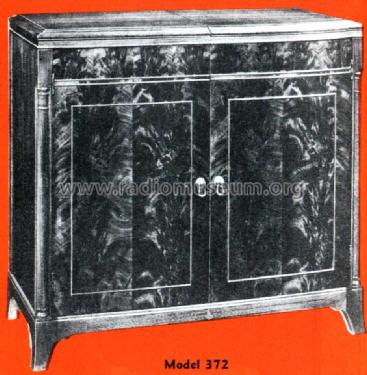

DS372 Ch= DS; Emerson Radio & (ID = 1408243) Radio
Emerson Radio &: DS372 Ch= DS [Radio] ID = 1408243 933x952
Select picture or schematic to display from thumbnails on the right and click for download.
For model DS372 (372) Ch= DS, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder for 1942.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1940–1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7 6SA7 6K7 6SQ7 6U5 6SQ7 6L6 6L6 5Z3
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: DS372 Ch= DS - Emerson Radio & Phonograph
Material Wooden case
Shape Console with any shape - in general
Notes

BC (540-1650kHz) band. Built-in loop or external antenna. Triple IF filters. Push-pull audio amplifier. Tuning eye.

Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Literature/Schematics (3) Emerson Folder for 1942.

Model page created by Götz Linss. See "Data change" for further contributors.



All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Here you find 1884 models, 995 with images and 1406 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
