Dynamotor DM-34-(*)

Dynamotor DM-34-; Emerson Radio & (ID = 1774418) Military
Dynamotor DM-34-; Emerson Radio & (ID = 1506809) Military Dynamotor DM-34-; Emerson Radio & (ID = 1506810) Military
Dynamotor DM-34-; Emerson Radio & (ID = 1506812) Military Dynamotor DM-34-; Emerson Radio & (ID = 1506813) Military
Dynamotor DM-34-; Emerson Radio & (ID = 1506814) Military Dynamotor DM-34-; Emerson Radio & (ID = 1506815) Military
Dynamotor DM-34-; Emerson Radio & (ID = 1506817) Military
Use red slider bar for more.
Dynamotor DM-34-; Emerson Radio & (ID = 1506809) Military
Emerson Radio &: Dynamotor DM-34- [Military] ID = 1506809 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dynamotor DM-34-(*), Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1940 ?? Category: Military Equipment
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Dynamotor DM-34- - Emerson Radio & Phonograph
Dimensions (WHD) 162 x 117 x 76 mm / 6.4 x 4.6 x 3 inch
Notes

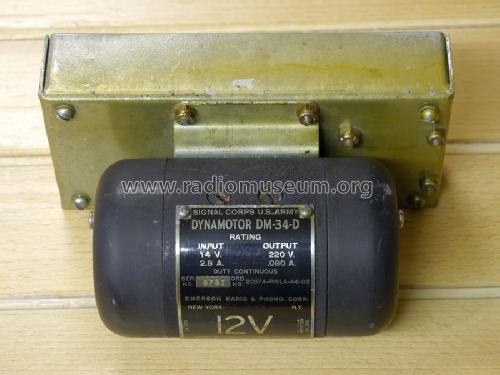

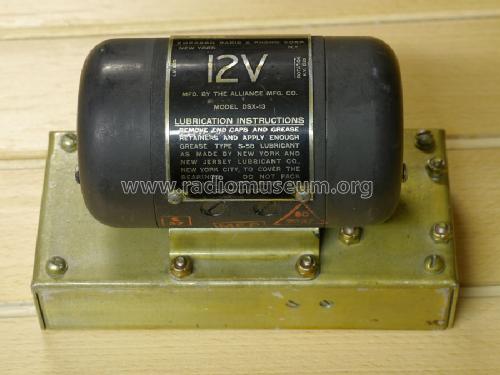

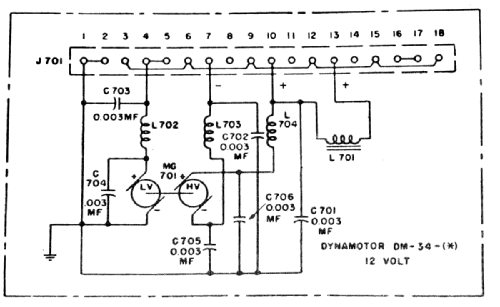

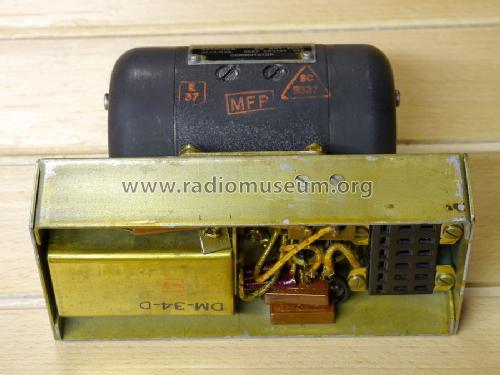

Dynamotor (Motor-Generator, single Rotor with double winding and commutator). Input 12 - 14 VDC 2.8 A (storage Battery); Output 220 VDC up to 80 mA for B voltage supply.

Used (and usually built in) in receivers BC-603 (part of radio set SCR-508) and BC-683 (part of radio set SCR-608)

Macchina elettrica denominata "dinamotore" usata, si presume nel caso specifico, per la produzione di tensione anodica per apparecchiature radio militari degli USA (Signal Corps U.S. Army). Essa è composta da uno statore ed un unico rotore con doppio collettore, uno con funzione di motore, alimentato in corrente continua a 14 V. - 2,8 A., e l'altro con funzione di dinamo per produrre l'alta tensione continua di 220 V. - 0,08 A.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Gianluigi Miazzi. See "Data change" for further contributors.
