EC336 (336) Ch= EC

EC336 Ch= EC; Emerson Radio & (ID = 285415) Radio
EC336 Ch= EC; Emerson Radio & (ID = 2388675) Radio EC336 Ch= EC; Emerson Radio & (ID = 2113025) Radio
EC336 Ch= EC; Emerson Radio & (ID = 374151) Radio EC336 Ch= EC; Emerson Radio & (ID = 573712) Radio
EC336 Ch= EC; Emerson Radio & (ID = 573713) Radio EC336 Ch= EC; Emerson Radio & (ID = 626379) Radio
EC336 Ch= EC; Emerson Radio & (ID = 626384) Radio EC336 Ch= EC; Emerson Radio & (ID = 626385) Radio
EC336 Ch= EC; Emerson Radio & (ID = 631944) Radio EC336 Ch= EC; Emerson Radio & (ID = 631945) Radio
Use red slider bar for more.
EC336 Ch= EC; Emerson Radio & (ID = 2388675) Radio
Emerson Radio &: EC336 Ch= EC [Radio] ID = 2388675 1400x903
Select picture or schematic to display from thumbnails on the right and click for download.
For model EC336 (336) Ch= EC, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: EC336 Ch= EC - Emerson Radio & Phonograph
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11 x 7.5 x 6 inch / 279 x 191 x 152 mm
Notes

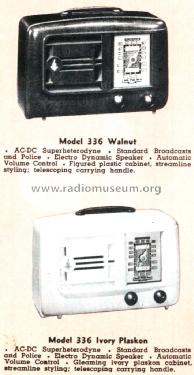

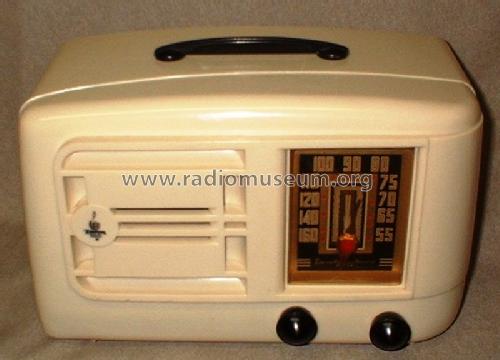

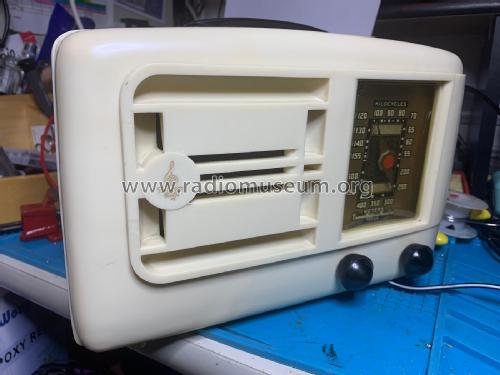

BC (540-1600kHz) band. Built-in loop antenna. Available in Walnut plastic cabinet or in Ivory plaskon cabinet.

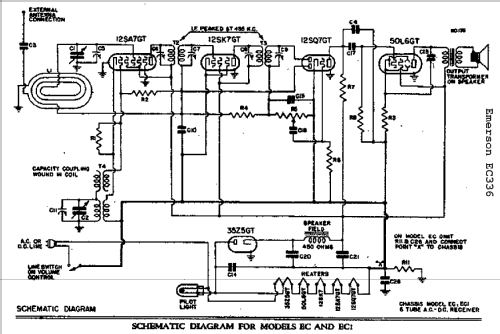

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (3) Emerson Folder for 1942.

Model page created by Götz Linss. See "Data change" for further contributors.
