EO388 Ch= EO

EO388 Ch= EO; Emerson Radio & (ID = 285603) Ampl/Mixer
Use red slider bar for more.
EO388 Ch= EO; Emerson Radio & (ID = 285603) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1942 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 1: 6SQ7
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: EO388 Ch= EO - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Record player adapter. Ingraham cabinet.
External source of data Ernst Erb
Source of data Machine Age to Jet Age III

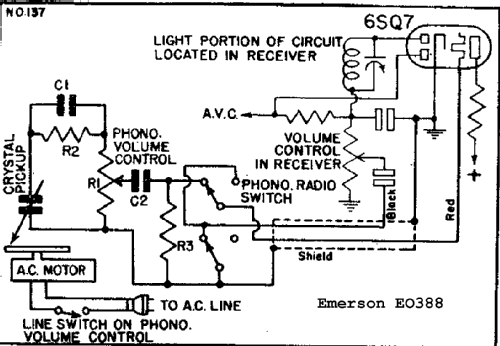

Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
