• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107079

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 27 27 27 24 27 45 45 80

• Main principle
• TRF without regeneration; 2 AF stage(s); Neutrodyne

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105;115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

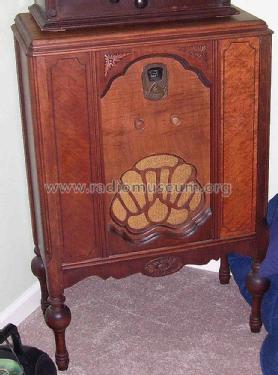

• Model: F - Emerson Radio & Phonograph

• Notes
• Final audio amplifier with 2 x 45 tubes in parallel.

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
