FP422 (422) Ch= FP

FP422 Ch= FP; Emerson Radio & (ID = 297075) Radio

FP422 Ch= FP; Emerson Radio & (ID = 286068) Radio
FP422 Ch= FP; Emerson Radio & (ID = 1534677) Radio FP422 Ch= FP; Emerson Radio & (ID = 1264967) Radio
FP422 Ch= FP; Emerson Radio & (ID = 1264968) Radio FP422 Ch= FP; Emerson Radio & (ID = 1264969) Radio
FP422 Ch= FP; Emerson Radio & (ID = 1408210) Radio FP422 Ch= FP; Emerson Radio & (ID = 1408211) Radio
FP422 Ch= FP; Emerson Radio & (ID = 1534678) Radio FP422 Ch= FP; Emerson Radio & (ID = 1534679) Radio
Use red slider bar for more.
FP422 Ch= FP; Emerson Radio & (ID = 1534677) Radio
Emerson Radio &: FP422 Ch= FP [Radio] ID = 1534677 933x811
Select picture or schematic to display from thumbnails on the right and click for download.
For model FP422 (422) Ch= FP, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: FP422 Ch= FP - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

BC (540-1630kHz) band. Built-in loop antenna.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before

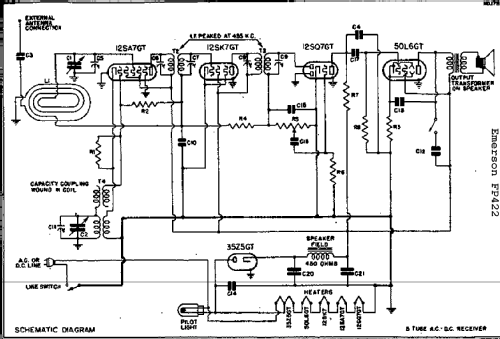

Literature/Schematics (3) Emerson Folder for 1942.


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
