For model G-1704B Lifetimer I Ch= 120580, Emerson Radio & Phonograph Corp.; New York, NY:

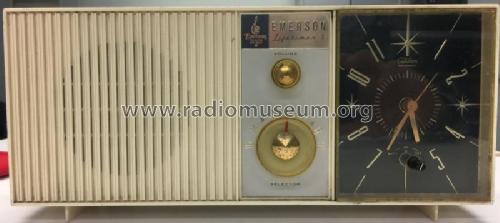

Lifetimer 1 Model: G 1704B Added model

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: G-1704B Lifetimer I Ch= 120580 - Emerson Radio & Phonograph
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes The Emerson Model G-1704B is an AC Operated 5 Tube AM Receiver with Eelectric Clock.

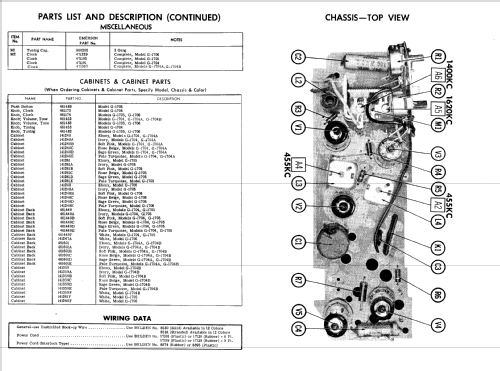

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-63, Set 615, Folder 6)

Model page created by Egon Penker. See "Data change" for further contributors.
