LAC4

LAC4 ; Emerson Radio & (ID = 15846) Radio
Use red slider bar for more.
LAC4 ; Emerson Radio & (ID = 15846) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 58 57 47 80
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: LAC4 - Emerson Radio & Phonograph
External source of data E. Erb 3-907007-36-0

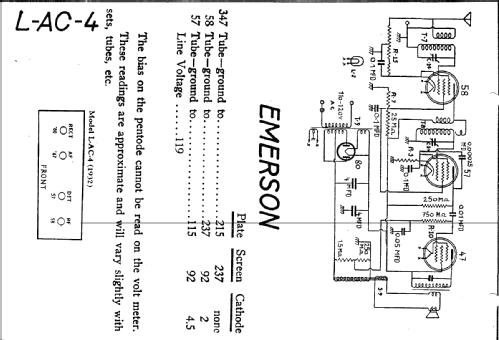

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
