R152 Ch= R; Emerson Radio & (ID = 2342341) Radio
Emerson Radio &: R152 Ch= R [Radio] ID = 2342341 1000x1080
Select picture or schematic to display from thumbnails on the right and click for download.
For model R152 Ch= R, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 or 6D6 75 or 6Q7G 41 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW), Police, sometimes also early TV (75-200m).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: R152 Ch= R - Emerson Radio & Phonograph
Material Wooden case

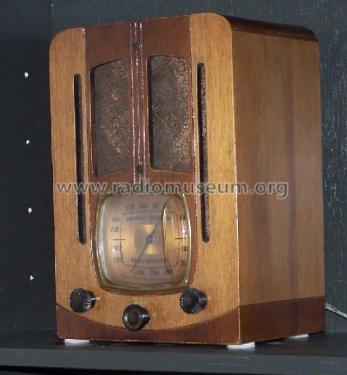

Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes BC(540-1580kHz) and TROP(1580-4200kHz) bands. Tube 75 used in serial numbers below 1311103, 78 in serial numbers below 1043350. Ingraham cabinet.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

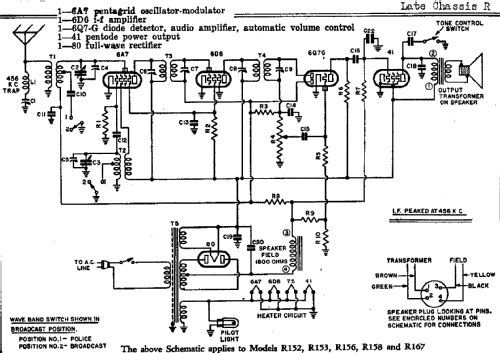

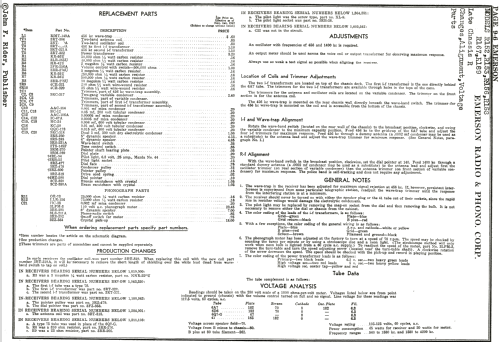

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Rider's Perpetual, Volume 9 = 1938 and before
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (2) Cathedral & Tombstone Radios (page 104.)
