• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196040

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

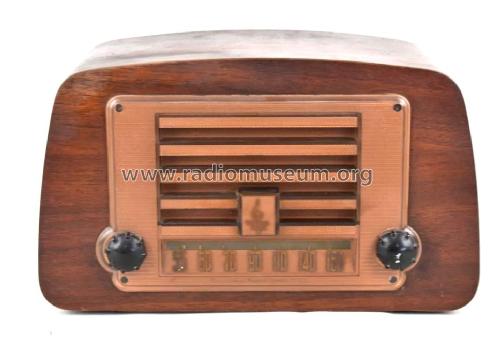

• Model: 588 Ch= 120050 - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11 x 5 x 6 inch / 279 x 127 x 152 mm

• Notes

• BC (540-1620kHz) band. Built-in loop antenna. Cabinet colors available in Blonde and Walnut.

• Literature/Schematics (1)

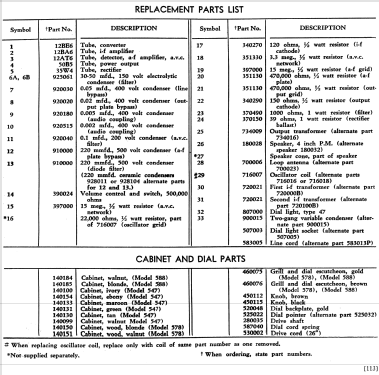

• Emerson Radio and Television Service Manual (Page 111)

• Literature/Schematics (3)
• Emerson Folder Form. 49-102, 8-48 for 1949.

• Author
• Model page created by Alfredo Silva. See "Data change" for further contributors.
