Emerson Radio &: 888 Transtimer Ch= 120416 [Radio] ID = 1133433 905x933

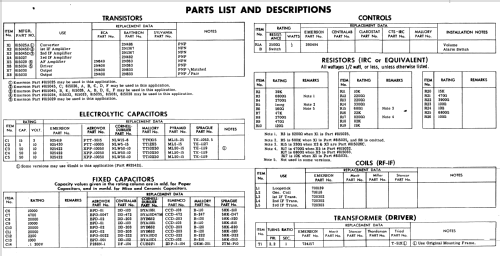

Select picture or schematic to display from thumbnails on the right and click for download.
For model 888 Transtimer Ch= 120416, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2N486 2N482 2N1367 2N1367 2N363 2N363 2N633 2N633
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4 × 1.5 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: 888 Transtimer Ch= 120416 - Emerson Radio & Phonograph
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes With clock. SAMS Photofact, date 12-60, set 509, folder 11 features the Emerson models 888 Transtimer Ch=120416 and 888 Transtimer 2 CH=120472 as the same schematic.
Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-60, Set 509, Folder 11)
Literature/Schematics (2) Transistor Radios 1954-68
