- Country
- Great Britain (UK)
- Manufacturer / Brand
- Emerson Electronics Ltd; London
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127068
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage

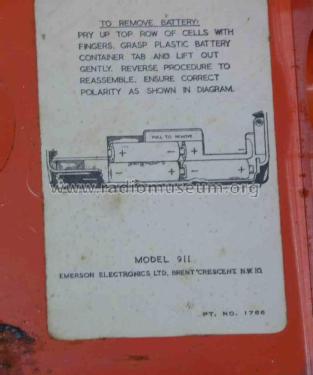

- Dry Batteries / 4 × 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

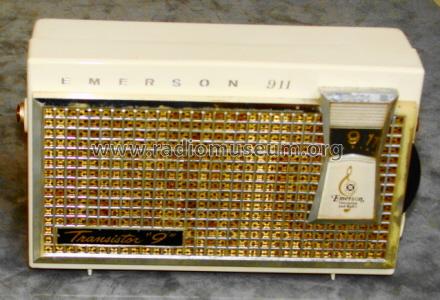

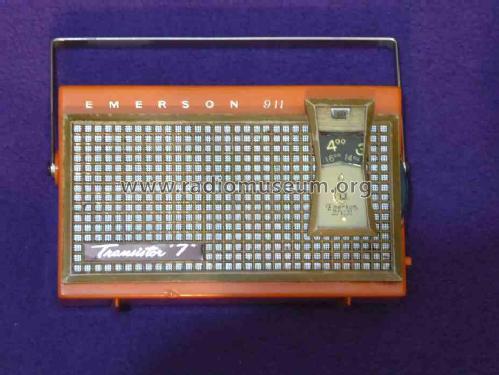

- Model: 911 - Emerson Electronics Ltd;
- Dimensions (WHD)
- 6.5 x 4 x 0 inch / 165 x 102 x 0 mm
- Notes
- Portable radio with car aerial socket.
- Source of data

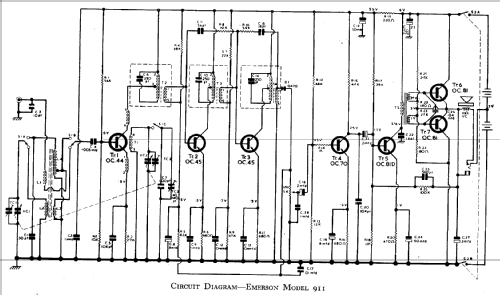

- -- Schematic
- Literature/Schematics (1)
- Paul Stennings Vintage Radio Service Data Vol 1
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
