For model Wondergram, Emerson Electronics Ltd; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Emerson Electronics Ltd; London
Year: 1960 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 3: GET114 S1RF S1RF
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Record Player (not changer)
Power type and voltage Storage and/or dry batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Wondergram - Emerson Electronics Ltd;
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 8 x 4 x 2 inch / 203 x 102 x 51 mm

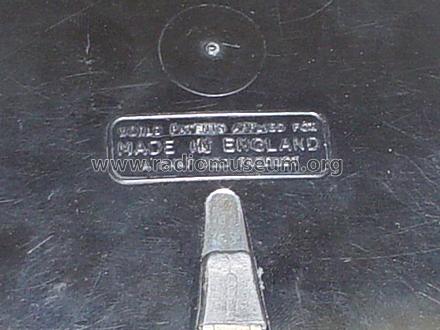

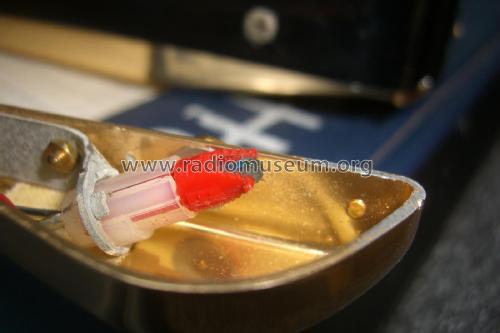

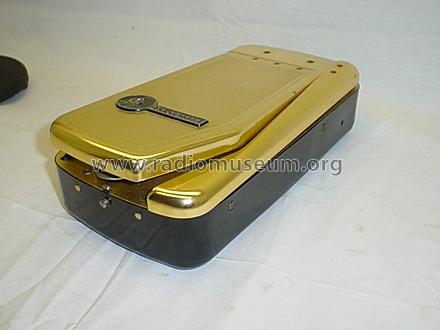

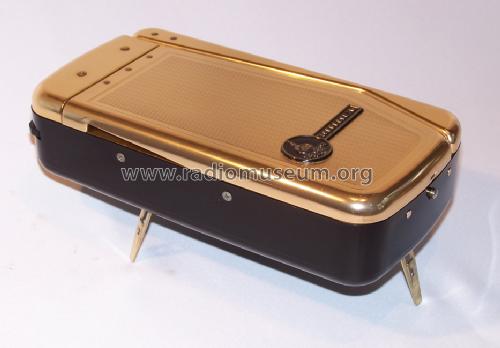

Notes Anodized aluminum lid and chassis, with black plastic body cover. Right side of lid splits into tone arm. Record motion through one of two idler wheels under record for 45rpm and 33rpm. The 45rpm wheel is slightly recessed so that only the 45 record touches it. The 33rpm wheel sits further out and is more prominent so only the 33rpm record touches it. Speaker faces down, and 3 legs fold out to elevate case and let speaker radiate. Tone arm activates motor. Shipped in red cardboard box with lettering. Made in England.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Joe Sousa. See "Data change" for further contributors.



All listed radios etc. from Emerson Electronics Ltd; London
Here you find 16 models, 8 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Emerson Electronics: Wondergram
Threads: 1 | Posts: 1
Hits: 2979     Replies: 0
emerson-uk: Emerson Baird Wondergram
Wolfgang Scheida
21.May.09
  1

The WWW indicates this model as "Made in England by Baird Ltd." and exported to US by Emerson US.

W.S.
