V-155 Ch= V
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1937/1938
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 39120
-
- alternative name: Emerson Television

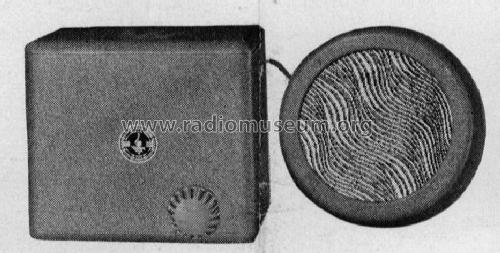

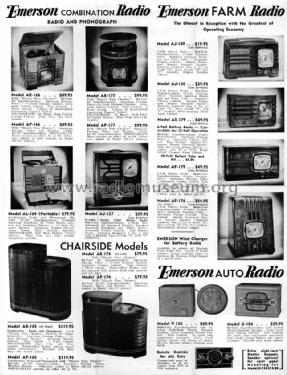

Scanned from the Radio Retailing March 1937.

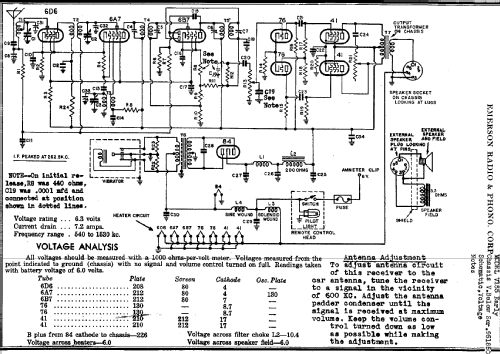

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 262.5 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- from Radiomuseum.org
- Model: V-155 Ch= V - Emerson Radio & Phonograph
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 8.75 x 8.25 x 7.25 inch / 222 x 210 x 184 mm
- Notes
-
BC (540-1530kHz) band. Push-pull audio amplifier. Built-in vibrator. Models with serial numbers below 951850 use 6B7 and 76 tubes. DeLuxe die-cast cabinet, platinum gray finish.
- Price in first year of sale
- 59.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference

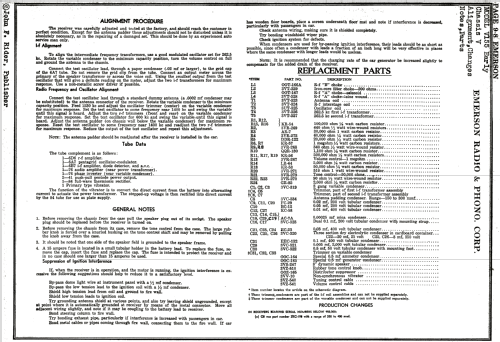

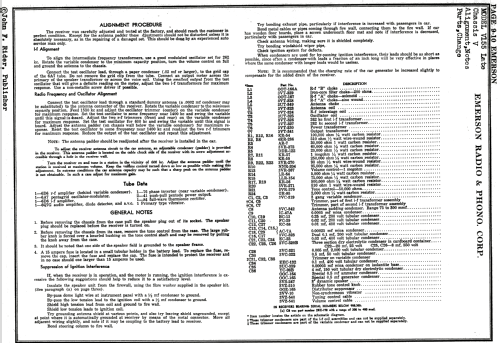

- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (March 1937.)
- Literature/Schematics (3)
- Emerson Folder Form. 38-3, 5-37 for 1938.
