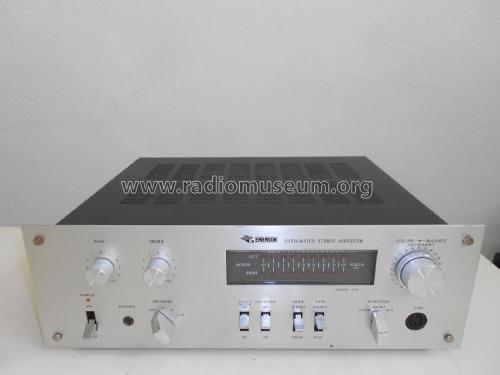

Integrated Stereo Amplifier Selene 6335

Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 1868967) Ampl/Mixer
Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398200) Ampl/Mixer Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398203) Ampl/Mixer
Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398202) Ampl/Mixer Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398205) Ampl/Mixer
Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398199) Ampl/Mixer Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398201) Ampl/Mixer
Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398204) Ampl/Mixer Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 106333) Ampl/Mixer
Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 106334) Ampl/Mixer Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 106335) Ampl/Mixer
Use red slider bar for more.
Integrated Stereo Amplifier Selene 6335; Emerson Radio & (ID = 2398200) Ampl/Mixer
Emerson Radio &: Integrated Stereo Amplifier Selene 6335 [Ampl/Mixer] ID = 2398200 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier Selene 6335, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1972 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present. STK0030 STK0030
Main principle Audio-Amplification
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110;220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: Integrated Stereo Amplifier Selene 6335 - Emerson Radio & Phonograph
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 310 x 140 mm / 16.9 x 12.2 x 5.5 inch
Notes

LED Aussteueranzeige

potenza d'uscita: 30 + 30 watt RMS - impedenza altoparlanti 8 Ω - controllo volume/toni alti/toni bassi/bilanciamento - commutatore speakers A/A+B/B/off - presa per cuffia frontale - presa frontale TAPE (din) - commutatore function: tape/phono/aux - commutatori: high filter on/off - loudness - mode mono/stereo - tape source/play - VU meter frontale e diodi led rossi - power consumption 160 watt - fusibili di protezione.

LED. Output power: 30 + 30 watts RMS. Loudspeaker impedance 8 Ω. Volume control / high tones / low tones / balance. Speakers switch A / A + B / B / off. Front headphone jack. Front TAPE socket (din). Function switch: tape / phono / aux - switches: high filter on / off - loudness. Mono / stereo mode. Tape source / play. VU meter front and red LED diodes. Power consumption 160 watts. Protection fuses.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Peter Böhm. See "Data change" for further contributors.
