• Country
• Great Britain (UK)

• Manufacturer / Brand
• EMI; Hayes, Middlesex

• Year
• 1955

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 73082

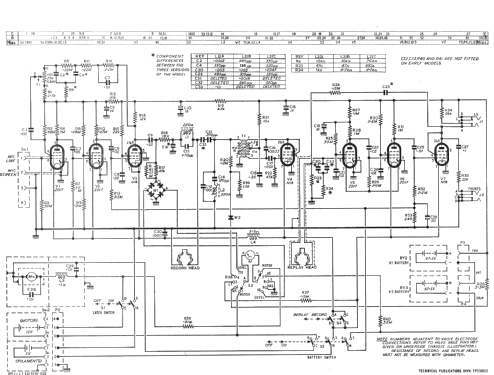

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 1S5 3Q4 3Q4 DAF91 DAF91 DAF91 3Q4

• Details
• Tape Recorder

• Power type and voltage
• Storage and/or dry batteries / 12V (8x1,5) Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: L2B - EMI; Hayes, Middlesex

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 355 x 204 x 172 mm / 14 x 8 x 6.8 inch

• Notes
• Professional taperecorder without loudspeaker, with headset connection. Predecessor of EMI RE-321.

• Author
• Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
