Micro Solid State MC-7

Micro Solid State MC-7; Emperor; Hong Kong (ID = 1045713) Radio
Micro Solid State MC-7; Emperor; Hong Kong (ID = 1045705) Radio Micro Solid State MC-7; Emperor; Hong Kong (ID = 1045706) Radio

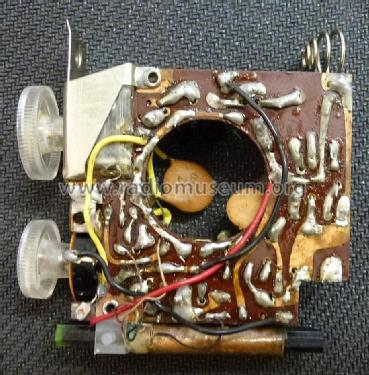

Micro Solid State MC-7; Emperor; Hong Kong (ID = 1045707) Radio Micro Solid State MC-7; Emperor; Hong Kong (ID = 1045710) Radio
Micro Solid State MC-7; Emperor; Hong Kong (ID = 1045712) Radio
Use red slider bar for more.
Micro Solid State MC-7; Emperor; Hong Kong (ID = 1045705) Radio
Emperor; Hong Kong: Micro Solid State MC-7 [Radio] ID = 1045705 933x831
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micro Solid State MC-7, Emperor; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Emperor; Hong Kong
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Micro Solid State MC-7 - Emperor; Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 70 x 30 mm / 2.6 x 2.8 x 1.2 inch
Notes Six transistors + 1 diode detector, superhet, 2 further diodes used to bias oscillator/mixer stage. Very small Hong Kong built radio.
Net weight (2.2 lb = 1 kg) 0.146 kg / 0 lb 5.1 oz (0.322 lb)
Mentioned in Schematic deduced from study of actual radio

Model page created by Colin Boggis. See "Data change" for further contributors.
