• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 1540

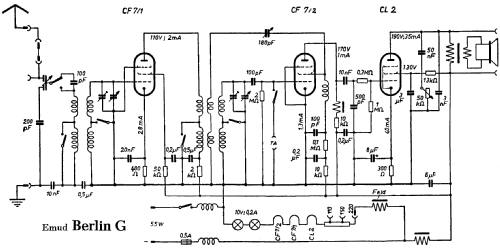

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 1 Special; 1 AF stage(s)
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Direct Current supply (DC) / 110-220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Berlin G - Emud, Ernst Mästling; Ulm
  • Dimensions (WHD)
  • 500 x 310 x 265 mm / 19.7 x 12.2 x 10.4 inch
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
