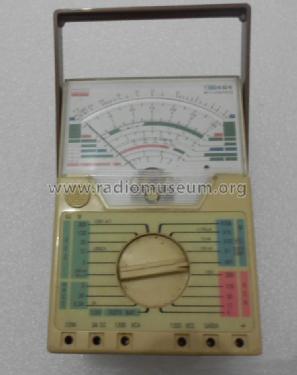

Analog Multimeter 484

Engro; Sao Paulo

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 234415

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 1,5 & 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Analog Multimeter 484 - Engro; Sao Paulo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 170 x 120 x 50 mm / 6.7 x 4.7 x 2 inch
  • Notes

  • Ohms: 4 ranges x 1, x 10, x 1k, x 10k (2 k at full scale)
    VCC: 6 ranges 0.3, 3, 12, 30, 120, 300 VDC (external jack 1200 V)
    VCA: 5 ranges 6, 12, 30, 120, 300 VCA (external 1200 Vca jack insert)
    mACC: 4 ranges 50uA, 3, 30, 300 mA (external 3 A jack) -10 to +17 dB read "0" center scale in CC
    self internal batery test function
    Fuse & diode protection
    electronic multimeter with IC amp-op.
    20 k ohms/v  imput CC
    9 k ohm/v input AC
    1,5v  test  bat HFE test beta 50 to 1000 logic signals probe.

    Fuse and diode protection



  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Author
  • Model page created by Dirson Willig. See "Data change" for further contributors.
