ERB H1-F1 (not Hi-Fi !) 10 Transistor Radio (Japan 201)

ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 946184) Radio ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 965436) Radio
ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 946192) Radio ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 951884) Radio
ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 965437) Radio ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 946191) Radio
ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 946189) Radio ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 946190) Radio
ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 951882) Radio ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 951883) Radio
Use red slider bar for more.
ERB H1-F1 10 Transistor Radio ; Erb; where (ID = 946184) Radio
Erb; where: ERB H1-F1 10 Transistor Radio [Radio] ID = 946184 700x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model ERB H1-F1 (not Hi-Fi !) 10 Transistor Radio (Japan 201), Erb; where:
Bought from ebay seller goldgalorenmore4u - because of the name. Photo not retaken!

Country:  Japan
Manufacturer / Brand:  Erb; where
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: ERB H1-F1 10 Transistor Radio - Erb; where
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 182 x 90 x 37 mm / 7.2 x 3.5 x 1.5 inch
Notes

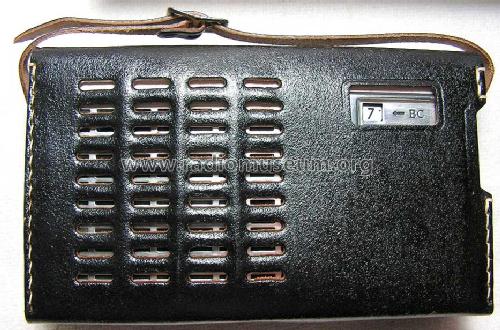

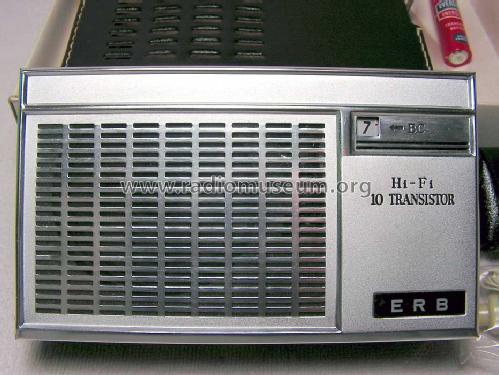

A pocket size transistor radio with a leather case, both in black. There is also a real leather case for the separate ear plug. There is no additional name on it except "ERB" and we believe that "H1 - F1 10 Transistor" as model name is pretending Hi-Fi and possibly some of the transistors are used as diodes. But it contains 10 transistors.

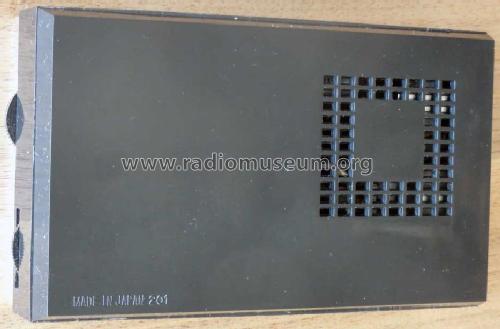

Made in Japan 201

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Collectors' prices
External source of data found on eBay

Model page created by Ernst Erb. See "Data change" for further contributors.
