LD60W

LD60W; Ericsson, (ID = 810533) Ampl/Mixer LD60W; Ericsson, (ID = 509434) Ampl/Mixer
LD60W; Ericsson, (ID = 509435) Ampl/Mixer LD60W; Ericsson, (ID = 509498) Ampl/Mixer
LD60W; Ericsson, (ID = 509499) Ampl/Mixer
Use red slider bar for more.

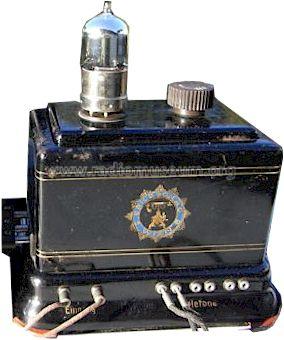

LD60W; Ericsson, (ID = 810533) Ampl/Mixer
Ericsson,: LD60W [Ampl/Mixer] ID = 810533 284x340
Select picture or schematic to display from thumbnails on the right and click for download.
For model LD60W, Ericsson, Österreichische Elektrizitäts-AG, vormals Deckert & Homolka; Wien:
Detailbild aus ID = 509435 von Herrn Schrammel

Country:  Austria
Manufacturer / Brand:  Ericsson, Österreichische Elektrizitäts-AG, vormals Deckert & Homolka; Wien
Year: 1925 Category: Audio Amplifier or -mixer
Valves / Tubes 1:
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: LD60W - Ericsson, Österreichische
Material Metal case, TUBES VISIBLE
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 180 x 125 x 120 mm / 7.1 x 4.9 x 4.7 inch
Notes NF-Verstärker
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Price in first year of sale 74.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Ericsson, Österreichische Elektrizitäts-AG, vormals Deckert & Homolka; Wien
Here you find 18 models, 11 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
