For model U11, Ericsson; Budapest:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Ericsson; Budapest
Year: 1925 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: U11 - Ericsson; Budapest

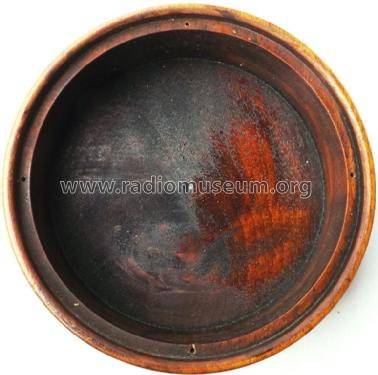

Material Wooden case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.

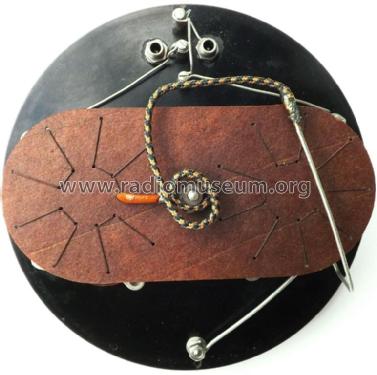

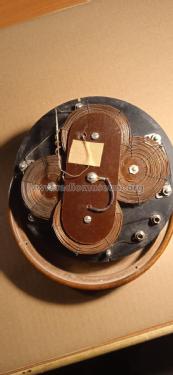

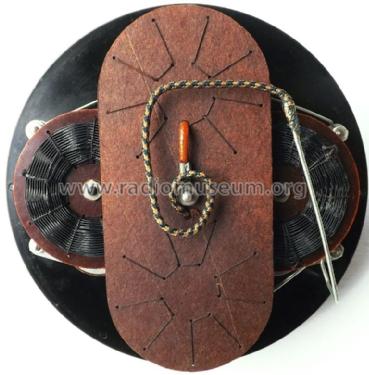

Notes With variometer.
Price in first year of sale 360'000.00 korona

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
