• Country
• Netherlands

• Manufacturer / Brand
• Erres, Van der Heem NV; Den Haag

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166329

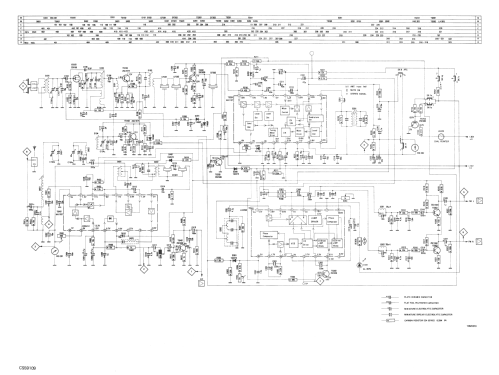

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 or 127 or 220 or 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

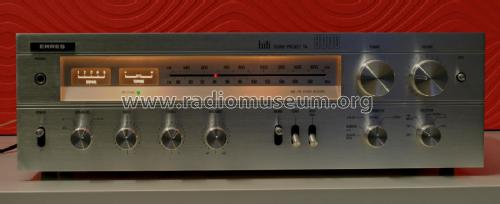

• Model: Hifi Sound Project TA8000 SX6774 /14 - Erres, Van der Heem NV; Den

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 150 x 380 mm / 18.9 x 5.9 x 15 inch

• Notes

• Ausgangsleistung: 2 x 50 Watt an 4 Ohm.

  Siehe auch Modell Schneider TA 8000 SX-6774.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
