Erres, Van der Heem: KY126 [Radio] ID = 369417 557x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model KY126, Erres, Van der Heem NV; Den Haag

Country:  Netherlands
Manufacturer / Brand:  Erres, Van der Heem NV; Den Haag
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner

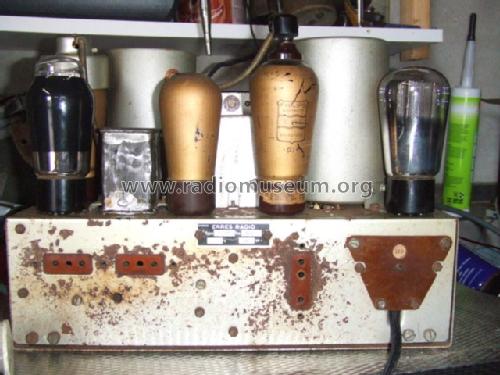

Valves / Tubes 5: E455 E462 E499 E443H 1823
Main principle TRF without regeneration; 2 AF stage(s); Anode bend detection
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: KY126 - Erres, Van der Heem NV; Den
Material Wooden case

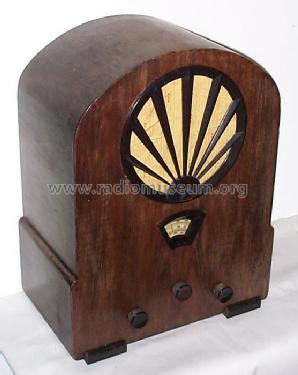

Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 375 x 490 x 220 mm / 14.8 x 19.3 x 8.7 inch
Notes

Loudspeaker Philips type 2161.

Price in first year of sale 142.00 Nfl
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) -- Original-techn. papers.

Model page created by John Koster. See "Data change" for further contributors.
