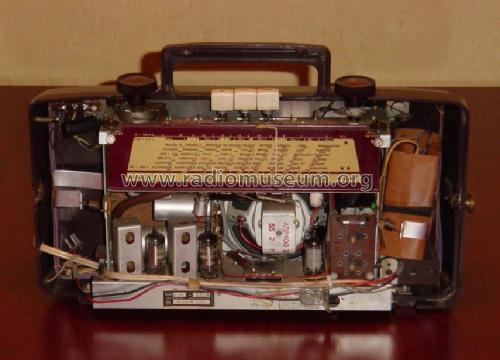

KY552; Erres, Van der Heem (ID = 224342) Radio KY552; Erres, Van der Heem (ID = 224343) Radio

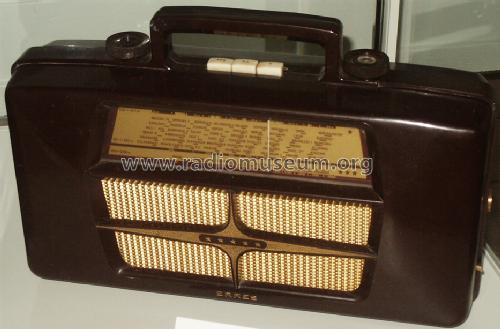

KY552; Erres, Van der Heem (ID = 1292368) Radio
Use red slider bar for more.
KY552; Erres, Van der Heem (ID = 204345) Radio
Erres, Van der Heem: KY552 [Radio] ID = 204345 546x385
Select picture or schematic to display from thumbnails on the right and click for download.
For model KY552, Erres, Van der Heem NV; Den Haag

Country:  Netherlands
Manufacturer / Brand:  Erres, Van der Heem NV; Den Haag
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK96 DF96 DF96 DAF96 DL96
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / DC 110/220; AC 110; 125; 220 / (6 × 1,5) & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: KY552 - Erres, Van der Heem NV; Den
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 390 x 250 x 120 mm / 15.4 x 9.8 x 4.7 inch
Notes Front and back are the same. When operating on batteries the mains plug should go into an internal receptable to switch batteries on. Internal frame antenna plus receptable for wire antenna.
Source of data -- Collector info (Sammler)

Model page created by John Koster. See "Data change" for further contributors.
