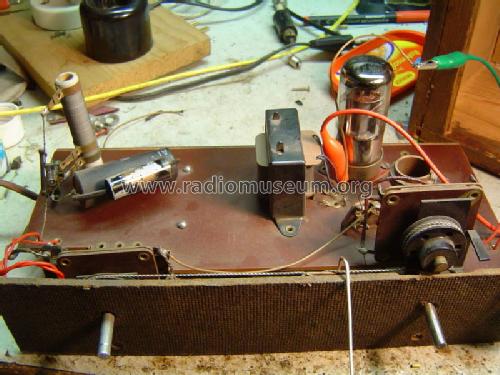

451GW; Erro-Radio, Oskar (ID = 576918) Radio 451GW; Erro-Radio, Oskar (ID = 576919) Radio
Use red slider bar for more.
451GW; Erro-Radio, Oskar (ID = 576915) Radio
Erro-Radio, Oskar: 451GW [Radio] ID = 576915 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 451GW, Erro-Radio, Oskar Beier; Berlin-Tempelhof

Country:  Germany
Manufacturer / Brand:  Erro-Radio, Oskar Beier; Berlin-Tempelhof
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: UEL71
Main principle TRF without regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 451GW - Erro-Radio, Oskar Beier;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 295 x 225 x 160 mm / 11.6 x 8.9 x 6.3 inch
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Hermann Rottmann und Fred P. Langheinrich hatten mir dieses Gerät erstmals bekannt gemacht. Sie verfügen jedoch nicht über Schaltungen darüber oder weitere Informationen, sondern haben mir bei der Recherche geholfen. Danke.
Mentioned in Funk-Technik (FT) (5121)
