Comprobador universal válvulas

Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 545277) Equipment
Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 1711077) Equipment Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 504782) Equipment
Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 504783) Equipment Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 442113) Equipment
Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 542839) Equipment Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 542840) Equipment
Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 542841) Equipment Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 1036016) Equipment
Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 1036017) Equipment Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 1036018) Equipment
Use red slider bar for more.
Comprobador universal válvulas ; Maymo, Escuela Radio (ID = 1711077) Equipment
Maymo, Escuela Radio: Comprobador universal válvulas [Equipment] ID = 1711077 933x837
Select picture or schematic to display from thumbnails on the right and click for download.
For model Comprobador universal válvulas, Maymo, Escuela Radio; Barcelona etc.

Country:  Spain
Manufacturer / Brand:  Maymo, Escuela Radio; Barcelona etc.
alternative name

ERMSA
Year: 1950–1970 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Comprobador universal válvulas - Maymo, Escuela Radio;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 260 x 290 x 90 mm / 10.2 x 11.4 x 3.5 inch
Notes Comprobador de válvulas de radio.

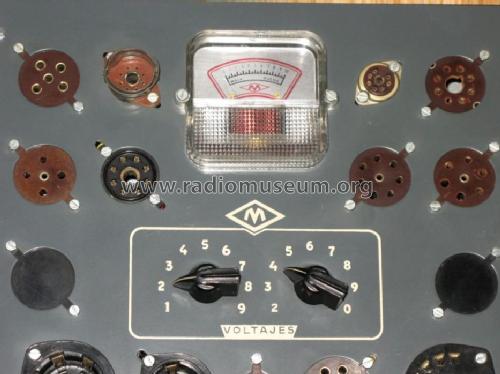

The instrument has 13 sockets: european side contat side, small contact side, 8 pins german, 4,5,6,7 pins american and octal, loctal, noval, miniatur 7 pins.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data - - Data from my own collection

Model page created by Felix Masso Milleiro. See "Data change" for further contributors.
