Multímetro

Multímetro ; Eratele Escuela (ID = 1138707) Equipment

Multímetro ; Eratele Escuela (ID = 1138709) Equipment
Multímetro ; Eratele Escuela (ID = 1075026) Equipment Multímetro ; Eratele Escuela (ID = 1892937) Equipment
Multímetro ; Eratele Escuela (ID = 1892939) Equipment
Use red slider bar for more.
Multímetro ; Eratele Escuela (ID = 1075026) Equipment

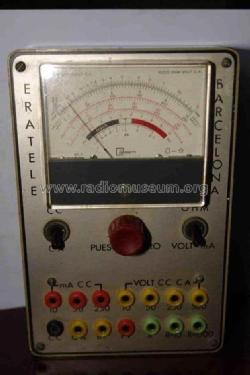

Eratele Escuela: Multímetro [Equipment] ID = 1075026 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multímetro, Eratele (Escuela Radio Y Television Europea); Barcelona

Country:  Spain
Manufacturer / Brand:  Eratele (Escuela Radio Y Television Europea); Barcelona
Year: 1960 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multímetro - Eratele Escuela Radio Y
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 135 x 200 x 60 mm / 5.3 x 7.9 x 2.4 inch
Notes Multímetro del Curso de Radio ERATELE (Barcelona).
Tensión: de 0,1 a 500 V cc/ca
Resistencia: de 0,1 Ohm a 1000 MOhm
Corriente: de 0,1 a 250 mA cc
Decibelio: de -25 a +55 dB.
Net weight (2.2 lb = 1 kg) 0.750 kg / 1 lb 10.4 oz (1.652 lb)
Source of data - - Data from my own collection

Model page created by Juan Almagro-Lopez. See "Data change" for further contributors.



All listed radios etc. from Eratele (Escuela Radio Y Television Europea); Barcelona
Here you find 17 models, 17 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
