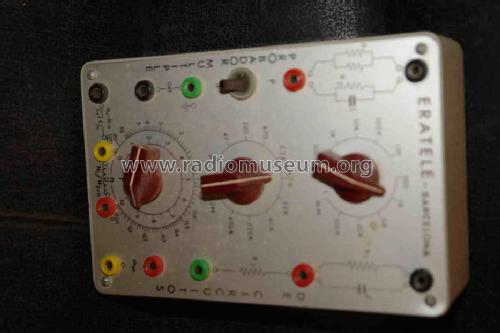

Probador Múltiple de Circuitos
Eratele (Escuela Radio Y Television Europea); Barcelona
- Country
- Spain
- Manufacturer / Brand
- Eratele (Escuela Radio Y Television Europea); Barcelona
- Year
- 1963 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 207809
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Probador Múltiple de Circuitos - Eratele Escuela Radio Y
- Dimensions (WHD)
- 40 x 180 x 110 mm / 1.6 x 7.1 x 4.3 inch
- Notes

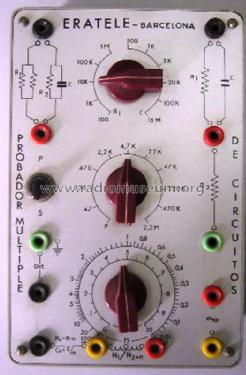

- Probador multiple de circuitos, del curso de la escuela de radio,
donde se realizan multiples circuitos en serie y paralelo R-C, R-R.
- Net weight (2.2 lb = 1 kg)
- 0.350 kg / 0 lb 12.3 oz (0.771 lb)
- Author
- Model page created by Juan Almagro-Lopez. See "Data change" for further contributors.
