- Country
- United States of America (USA)
- Manufacturer / Brand
- Espey Mfg. Co., Inc.; New York (NY)
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147094
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- from Radiomuseum.org
- Model: 18B - Espey Mfg. Co., Inc.; New York
- Shape
- Tablemodel, low profile (big size).
- Notes
- The Espey Model 18B is an AC/DC Operated 5 Tube Superheterodyne Receiver with Loop Antenna.
- Literature/Schematics (1)

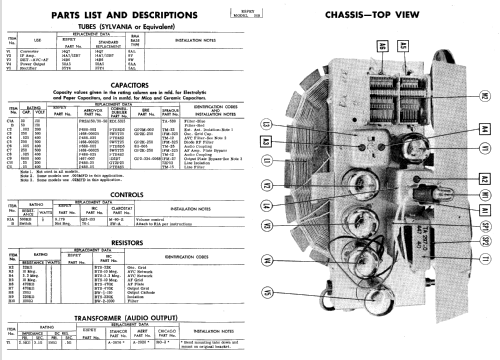

- Photofact Folder, Howard W. SAMS (Date 3-50, Set 90, Folder 7)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
