652 Ch= FJ-97
Espey Mfg. Co., Inc.; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Espey Mfg. Co., Inc.; New York (NY)
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39208

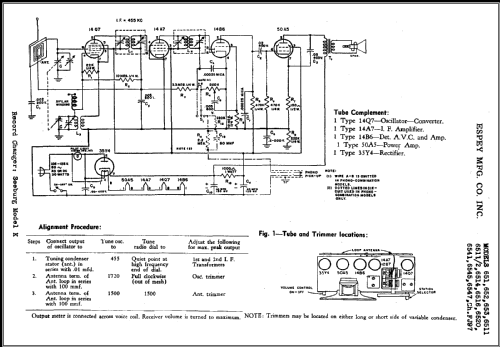

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.63 inch = 11.8 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 652 Ch= FJ-97 - Espey Mfg. Co., Inc.; New York
- Notes

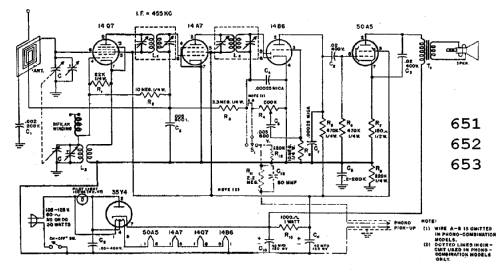

- Built-in loop antenna. Sams photofact set 9 folder 469-14 date 12-46 features the Espey models 651, 652, 6511 and 6516 as the same schemTIC:
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Beitman Radio Diagrams, Vol. 06, 1946
- Literature/Schematics (1)

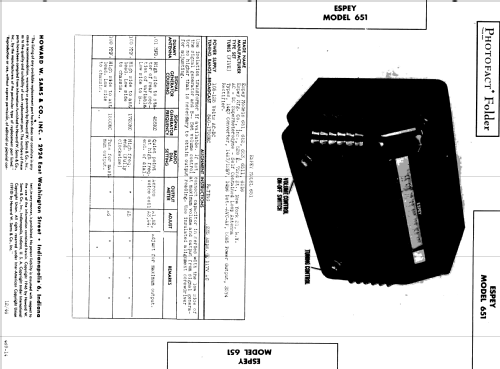

- Photofact Folder, Howard W. SAMS (Set 9 folder 469-14 date 12-46)
