550U

550U ; Esquire Radio Corp., (ID = 1458819) Radio 550U ; Esquire Radio Corp., (ID = 1458818) Radio

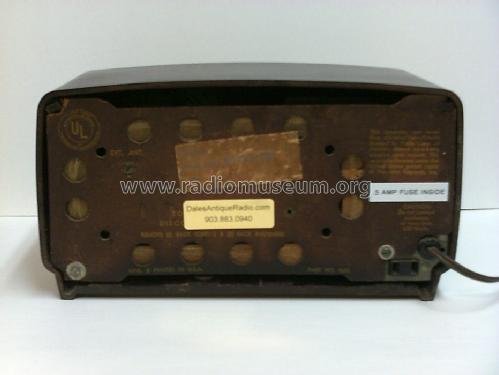

550U ; Esquire Radio Corp., (ID = 1458820) Radio
Use red slider bar for more.
550U ; Esquire Radio Corp., (ID = 1458819) Radio
Esquire Radio Corp.,: 550U [Radio] ID = 1458819 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 550U, Esquire Radio Corp., New York

Country:  United States of America (USA)
Manufacturer / Brand:  Esquire Radio Corp., New York
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 550U - Esquire Radio Corp., New York
Material Bakelite case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes stands on feet.
Source of data Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS ((Set 177 Folder 6 8-1952))

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
