• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 201149

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

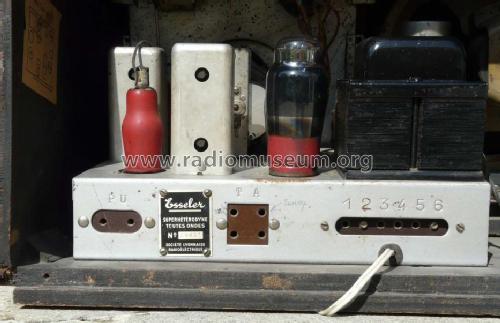

  • Model: 540AC - Esseler - voir aussi SLR S.L.R
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 500 x 300 x 300 mm / 19.7 x 11.8 x 11.8 inch
  • Notes
  • Poste classique juste avant guerre. Noter la préamplification audio par l'oeil magique.
  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Author
  • Model page created by Olivier Palix. See "Data change" for further contributors.
