Ohmmetro - Ohmmeter

ETF; Barcelona

  • Year
  • 1968 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 288247

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 1.5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Ohmmetro - Ohmmeter - ETF; Barcelona
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 130 x 145 x 70 mm / 5.1 x 5.7 x 2.8 inch
  • Notes

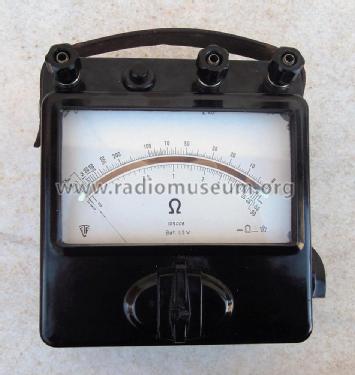

  • Two graduated scales : 0-50 Ω and 0-2 kΩ.
    Dielectric strength : 2 kV.

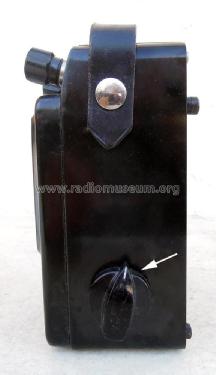

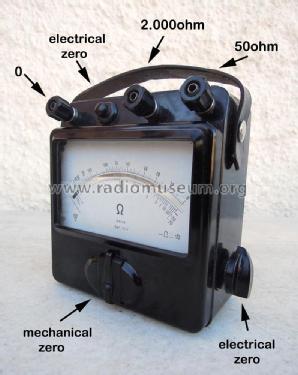

    Magnetoelectric (moving coil) instrument. Screw for mechanical zero adjustment. Button and rotative control for electrical zero adjustment. Functions in horizontal position.

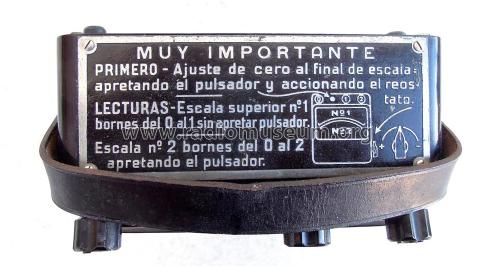

    Bakelite case. Plaque with brief instructions of use. Provided with a leather bag for transportation.



  • Net weight (2.2 lb = 1 kg)
  • 1.6 kg / 3 lb 8.4 oz (3.524 lb)
