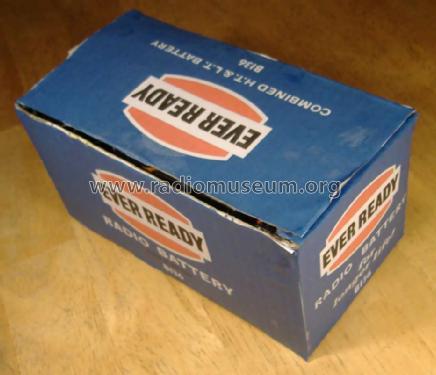

Radio Battery B136

Radio Battery B136; Ever Ready Co. GB (ID = 615094) Power-S Radio Battery B136; Ever Ready Co. GB (ID = 615095) Power-S
Radio Battery B136; Ever Ready Co. GB (ID = 1355934) Power-S Radio Battery B136; Ever Ready Co. GB (ID = 1355935) Power-S
Radio Battery B136; Ever Ready Co. GB (ID = 1355936) Power-S Radio Battery B136; Ever Ready Co. GB (ID = 1837076) Power-S
Use red slider bar for more.
Radio Battery B136; Ever Ready Co. GB (ID = 615094) Power-S
Ever Ready Co. GB: Radio Battery B136 [Power-S] ID = 615094 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Battery B136, Ever Ready Co. (GB) Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Ever Ready Co. (GB) Ltd.; London
Year: 1953 ? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 1,5 & 90 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Radio Battery B136 - Ever Ready Co. GB Ltd.; London
Dimensions (WHD) 198 x 100 x 90 mm / 7.8 x 3.9 x 3.5 inch
Notes

HT/LT Battery pack for larger portables, including the Ever Ready Sky King, Sky Queen and Sky Monarch.

Balanced for 125mA LT and about 10mA HT

HT is Layer type "biscuits" and LT is possibly 4 x Zinc Carbon "F" Cells for over 240 hours reliable operation, basically 1/2 LT current version of AD3 for Dx96 series battery valves.

Connection type "H" (Same as AD3, B103, B134 & B137)

Equivalents

  • GEC BB536
  • Vidor 5537
  • Others: KL36, S136
Net weight (2.2 lb = 1 kg) 2.730 kg / 6 lb 0.2 oz (6.013 lb)
Source of data - - Manufacturers Literature
Mentioned in 1959 Ever Ready Dry Battery Poster

Model page created by Bill Morris. See "Data change" for further contributors.
