Batrymax B104

Batrymax B104; Ever Ready Co. GB (ID = 1609685) Power-S
Batrymax B104; Ever Ready Co. GB (ID = 1609534) Power-S Batrymax B104; Ever Ready Co. GB (ID = 1356500) Power-S
Use red slider bar for more.
Batrymax B104; Ever Ready Co. GB (ID = 1609534) Power-S
Ever Ready Co. GB: Batrymax B104 [Power-S] ID = 1609534 788x1002
Select picture or schematic to display from thumbnails on the right and click for download.
For model Batrymax B104, Ever Ready Co. (GB) Ltd.; London:
Enlarged and edited from ebay 171047879372 lil_penguin

Country:  Great Britain (UK)
Manufacturer / Brand:  Ever Ready Co. (GB) Ltd.; London
Year: 1946 ?? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 45 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Batrymax B104 - Ever Ready Co. GB Ltd.; London
Dimensions (WHD) 90 x 115 x 36 mm / 3.5 x 4.5 x 1.4 inch
Notes

Later "Radio Battery" replaces "Batrymax"

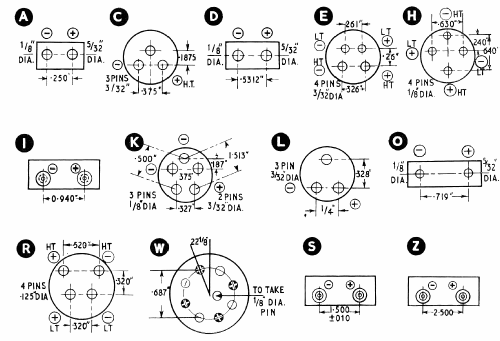

Connector type: "K".  The C plug (as used on B126) will match with - and + on a K socket as might the larger overall L Plug

Layer type cell (stacked "biscuits")

Equivalents

Possibly 2500mAH, about 250 hrs HT

Many Radio sets use 2 x 45V packs for HT.

The  US Eveready 482 appears to use the same socket and looks superfically similar but it's larger 89 x 140 x 44mm approximately.

Net weight (2.2 lb = 1 kg) 0.710 kg / 1 lb 9 oz (1.564 lb)

Model page created by Michael Watterson. See "Data change" for further contributors.
