Power Pack PP9

Power Pack PP9; Ever Ready Co. GB (ID = 1356678) Power-S
Use red slider bar for more.
Power Pack PP9; Ever Ready Co. GB (ID = 1356678) Power-S
Ever Ready Co. GB: Power Pack PP9 [Power-S] ID = 1356678 933x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Pack PP9, Ever Ready Co. (GB) Ltd.; London:

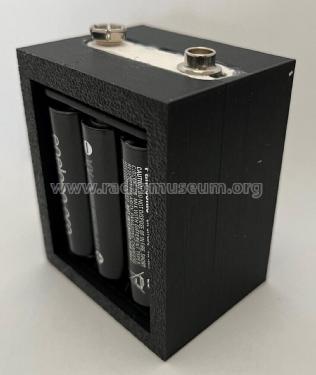

Period style replica using 4 x Alkaline AA cells fitted to a TR130, which specifically states to "Don't use a metal cased PP9"

Country:  Great Britain (UK)
Manufacturer / Brand:  Ever Ready Co. (GB) Ltd.; London
Year: 1956 ?? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Power Pack PP9 - Ever Ready Co. GB Ltd.; London
Dimensions (WHD) 65 x 81 x 51 mm / 2.6 x 3.2 x 2 inch
Notes

The PP series are all layer cells, often 4  or 6 stack of exact type used in "Batrymax"/"Radio Batteries HT packs (typically 4 x stacks of 15 "biscuit" style cells). There never was a PP2.

Connection type: PP9 style snap.

About 5000mAH depending on load

Equivalents:

  • GEC BB29
  • Vidor T6009
  • Eveready (NCC) 276
  • IEC 6F100
  • NEDA 1603
  • Varta 439
  • Others: DT9, TR9, VT9,

Very common on Table Model transistor sets, but Asian makers preferred 4 x C or 4 x D cells. Some models (e.g. Hacker RP18) used 2 x PP9.

Still available even in some "High Street" retail shops, though a premium price (Eveready branded as Ever Ready UK are gone). Using 6 x Alkaline AA cells is 2500mAH to 3000mAH in a replica pack may soon be the only source.

Later versions swapped the Waxed (inside) cardboard case for a directly printed metal can. The last versions use a plastic case with a wrapped on paper label

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Michael Watterson. See "Data change" for further contributors.
