• Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 152645

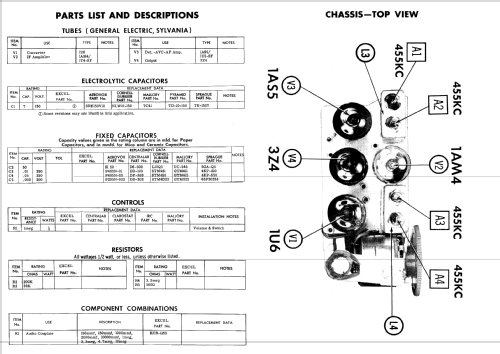

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 1.5 & 67.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

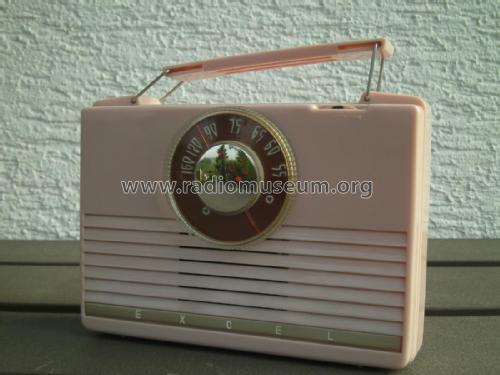

  • Model: XL-45 - Excel Corp. of America, New
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

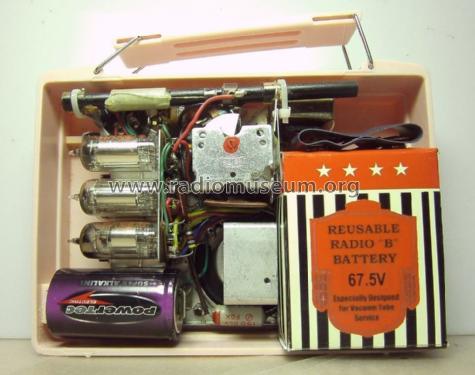

  • The Excel Portable Radio Model XL-45 is a Battery operated 4 Tube AM Receiver. Manufactured in Japan by Shirasuna Denki Mfg. Ltd.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
