• Country
• Germany

• Manufacturer / Brand
• Excelsiorwerk; Leipzig

• Year
• 1935 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 282079

• • Brand: Kiesewetter

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Widerstandsmessbrücke - Excelsiorwerk; Leipzig

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 80 x 155 mm / 8.9 x 3.1 x 6.1 inch

• Notes

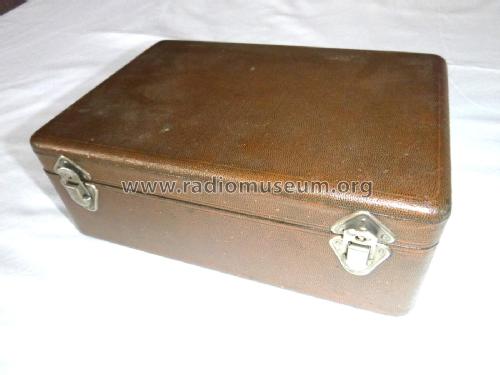

• Widerstandsmessbrücke im Holzgehäuse.
  Wheatstone-Messbrücke mit Nullinstrument.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Author
• Model page created by Helmut Matysik. See "Data change" for further contributors.
