Waves-Record Série Midget

Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714302) Radio Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714304) Radio
Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714308) Radio Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714309) Radio
Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714310) Radio Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714311) Radio
Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714312) Radio
Use red slider bar for more.

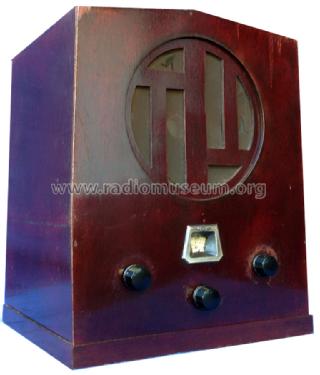

Waves-Record Série Midget; Fa Do, Éts.; Paris (ID = 1714302) Radio
Fa Do, Éts.; Paris: Waves-Record Série Midget [Radio] ID = 1714302 769x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Waves-Record Série Midget, Fa Do, Éts.; Paris

Country:  France
Manufacturer / Brand:  Fa Do, Éts.; Paris
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: E445 E442S E428 E455 E428 E443H 506
Main principle Superhet with RF-stage
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Waves-Record Série Midget - Fa Do, Éts.; Paris
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 320 x 400 x 270 mm / 12.6 x 15.7 x 10.6 inch
Notes

Jeu de lampes incertain: il est possible que la radio est équipé de lampes Grammont à l'origine.

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)

Model page created by Spartaco Gori. See "Data change" for further contributors.



All listed radios etc. from Fa Do, Éts.; Paris
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
