167-A Hazeltine kit 5 tube

167-A Hazeltine kit 5 tube; Fada Radio & (ID = 453502) Kit

167-A Hazeltine kit 5 tube; Fada Radio & (ID = 453503) Kit
Use red slider bar for more.

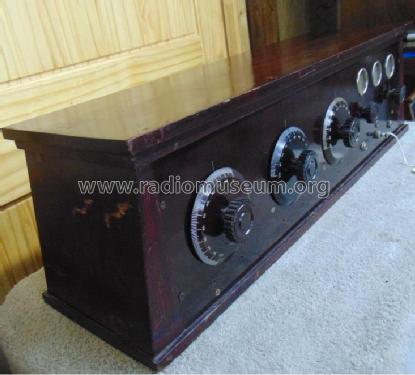

167-A Hazeltine kit 5 tube; Fada Radio & (ID = 453502) Kit
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1923 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 5:
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 167-A Hazeltine kit 5 tube - Fada Radio & Electric Co.;
Material Various materials
Shape Chassis only or for «building in»
Notes

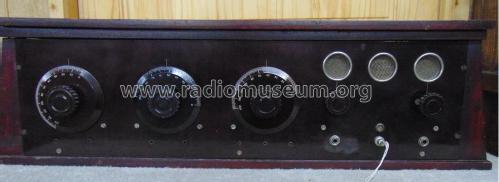

Binding posts at front panel. Three dials (primary tuning control knobs)

Price in first year of sale 67.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Radio Manufacturers of the 1920s, Vol 1
