265-A Special Ch= R-65

Fada Radio & Electric Co.; Long Island (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1927–1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 39496
    • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration; 2 AF stage(s); Neutrodyne
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 265-A Special Ch= R-65 - Fada Radio & Electric Co.;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes

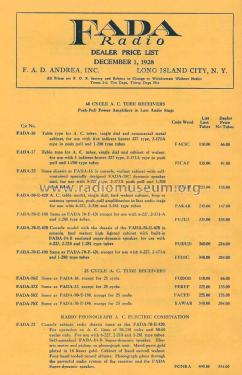

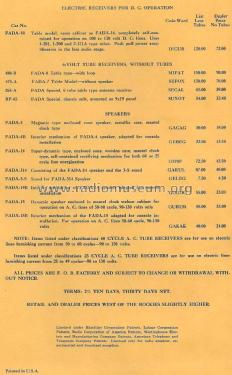

  • The chassis R-65 has been used for some different cabinets. Here it is FADA Radio model 265-A Special. Some others have the RP-65 Unit as chassis. The FADA dealer price list of December 1st 1928 mentiones the FADA 265-A as FADA special, 6 tube table type antenna receiver - for a dealer price of 39 $ and end price 65 $ without tubes - but still a reduced price.
  • Price in first year of sale
  • 95.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
