• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39580

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A UX171A

• Main principle
• TRF without regeneration; 2 AF stage(s); Neutrodyne

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

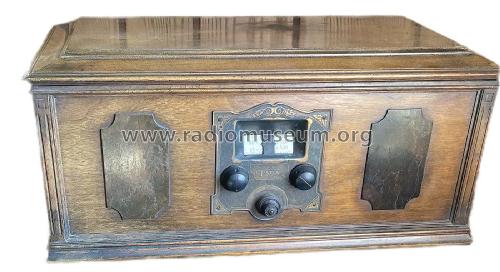

• Model: 460-A Ch= R-60 - Fada Radio & Electric Co.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 24 x 11 x 14 inch / 610 x 279 x 356 mm

• Notes
• The FADA model R-60 Unit as chassis was available as R-60/10 or R-60/20 for antenna operation only or as R-60/30 and R-60/40 for either loop or antenna operation. It means chassis only - which then could be built in as a 460-A Receiver or used for SF-10/60 Davenport Table, SF-20/60 Beethoven Grande, SF-40/60 Console or SF-30/60 Queen Anne Desk. The speaker was always separate.

• Net weight (2.2 lb = 1 kg)
• 50 lb (50 lb 0 oz) / 22.7 kg

• Price in first year of sale
• 160.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Radio Manufacturers of the 1920s, Vol 1
